Model

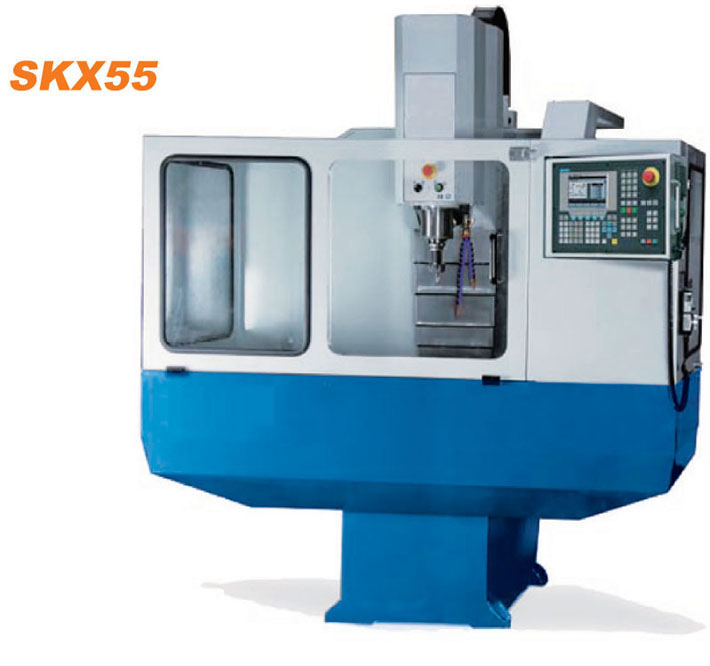

SKX55
Spindle taper
BT40
Distance spindle/table
110-510mm
£¨L×W£©Cross table size(L×W)
960×280mm
T-slot size/Distance/Number
14mm/85mm/3
Spindle speed
100-6000rpm
Z-axis travel
400mm
Y-axis travel
300mm
X-axis travel
450mm
Rate of feed Z axis
1500mm/min
Rate of feed Y axis
3000mm/min
Rate of feed X axis
Load of cross table(max)
300kgs
Net weight
1050kgs
Net power coolant pump
90W
Main spindle
4KW 380V/50HZ/3PH
