Model

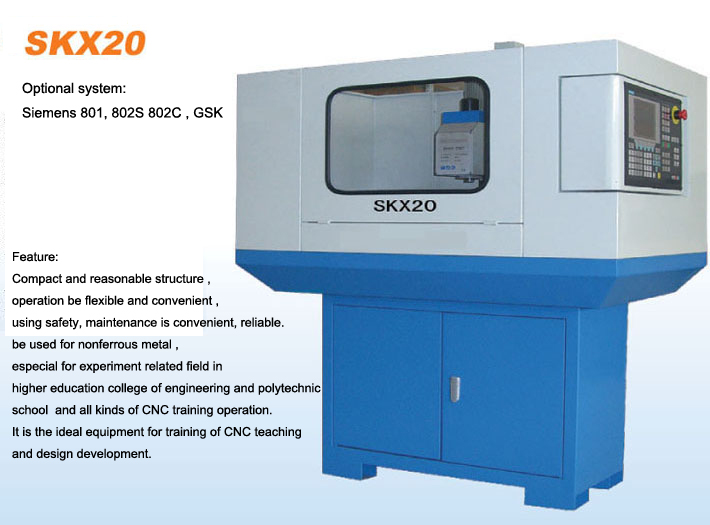

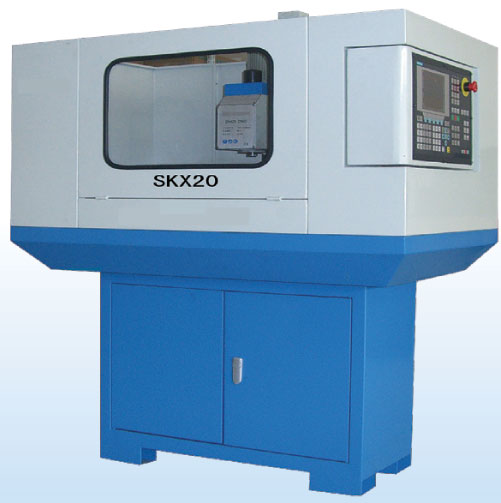

SKX20

Max. drilling capacity

20mm

Max. face milling capacity

63mm

Max. end milling capacity

20mm

Spindle taper

MT2

T-slot size/distance/No

12mm/63mm/3

Table size

500×180mm

Z/Y/X travel

275mm/135mm/300mm

Rate of feed Z/Y/X axis

2000mm/3000mm/3000mm

Spindle speed

80-3500rpm (frequency control )
infinitely variable speed

Positioning accuracy

±0.02/300mm

Rep positioning accuracy

±0.01mm

(X) (Y)（Z）Stepping motor torque

3N.M/3N.M/4N.M

Spindle motor power

600W

N.W/G.W

300Kg/340Kg

Packing size

1300×1000×1680mm
