Precision Lathe |

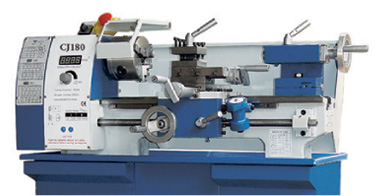

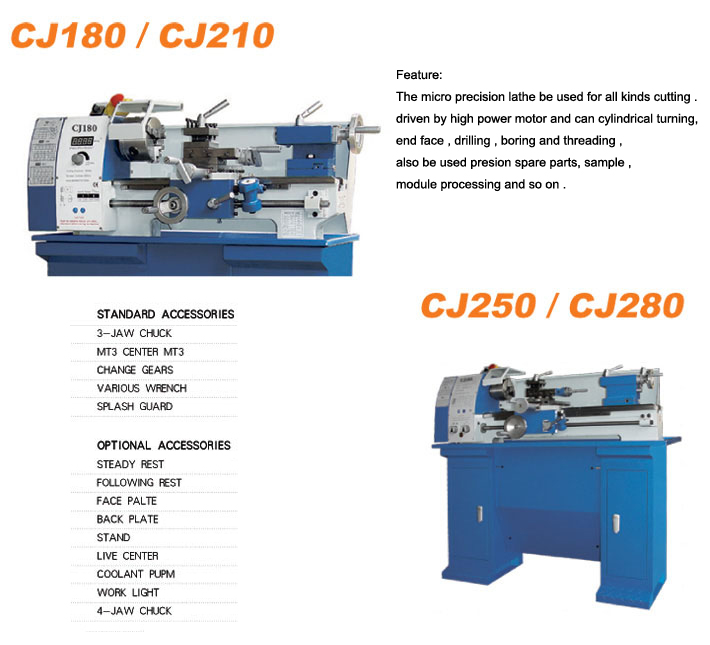

Precision lathe CJ180/210/250/280 |
 |
|
Model
|
CJ180
|
CJ210
|
CJ250
|
CJ280
|
|
Turning Ø via lathe bed
|
§æ180mm
|
§æ210mm
|
§æ250mm
|
§æ280mm
|
|
Distance between centers
|
300mm
|
320mm
|
550mm
|
700mm
|
|
Spindle bore
|
§æ21mm
|
20mm
|
20mm
|
26mm
|
|
Spindle taper
|
MT3
|
MT3
|
MT3
|
MT3
|
|
Spindle speeds
|
150-3000rpm
|
125-2000rpm
|
125-2500rpm
|
125-2500rpm
|
|
Tailstock taper
|
MT2
|
MT2
|
MT2
|
MT2
|
|
Pitch-metric
|
0.5-3mm
|
0.4-3mm
|
0.4-3mm
|
0.4-3mm
|
|
Pitch-inch
|
8-44TPI
|
10-44TPI
|
10-44TPI
|
10-44TPI
|
|
Motor power
|
600W/230V/50Hz
|
0.55KW
|
0.65KW
|
0.75KW
|
|
N.W./G.W.
|
44/66kg
|
110/140Kg
|
125/165Kg
|
180/202Kg
|
|
Packing size
|
760×500×480mm
|
932×560×545mm
|
1200×520×570mm
|
1316×556×630mm
|
|
| |
|
|
