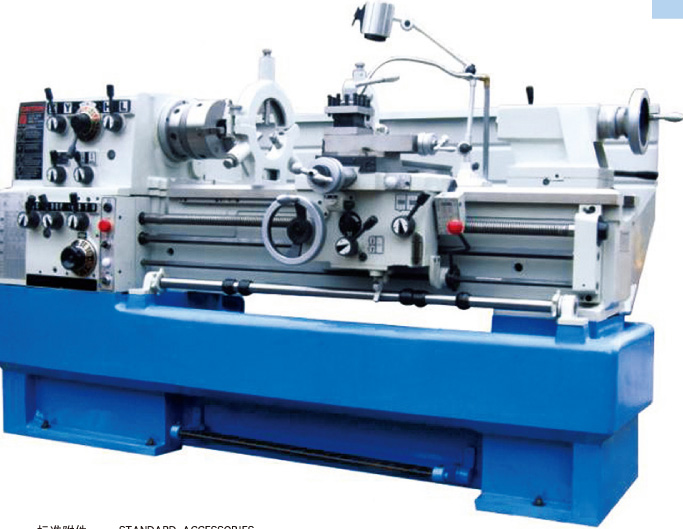

Swing over bed

ø410mm

ø460mm

Swing over cross slide

ø224mm

ø274mm

Turning ø without bed bridge

ø640mm

ø690mm

Center height

205mm

230mm

Admits between

1000mm(40")/1500mm(60")

Width of bed

300mm

Spindle bore

D1-6/ø58mm

Taper of spindle bore

MT6

Range of spindle speed

25-2000rpm

Compound rest travel

128mm(5")

Cross slide travel

285mm(11-1/4")

Lead screw thread

6mm or 4T.P.I.

Max. Section of tool（W x H)

25x25mm(1x1")

Longitudinal feeds range

42kinds,0.0031-1.7mm/rev

Cross feeds range

42kinds,0.014-0.784mm/rev

Threads metric pitches

0.1-14mm

Threads imperial pitches

2-112TPI

Threads diametral pitches

50kinds,4-112D.P.

Threads module pitches

34kinds,0.1-7M.P.

Quill diameter

60mm(2-5/16")

Quill travel

120mm(4-3/4")

Quill taper

MT4

Cross adjustment

±13mm

Main motor power

4 or 5.5KW

Coolant pump power

0.1KW/3PH

Packing size(L x W x H)

2850x1120x1700mm

Overall dimension(L x W x H)

2200x1080x1340mm

2750x1080x1340mm

NW/GW

1670/1980kgs

2020/2385kgs
