Model
|

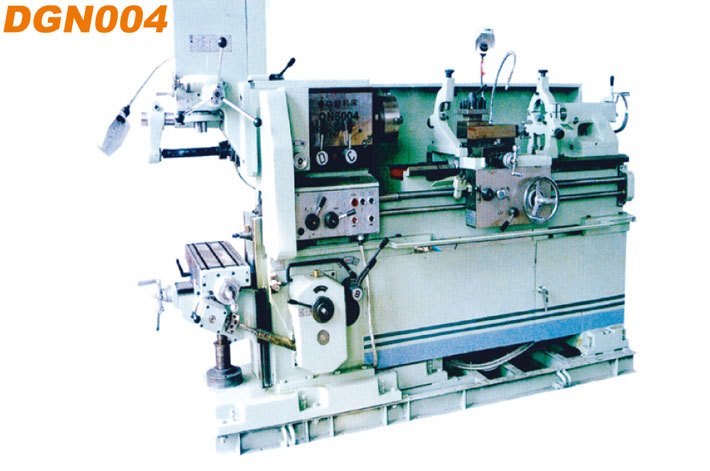

DGN004
|
|
Main motor power
|
AC 3KW 50/60HZ
|
|
Machine mass
|
2000KG/2400KG
|
|
Machine overall dimension(L×W×H)
|
2485mm×1228mm×1583mm
|
|
Turner
|
|
|
Swing over bed
|
420mm
|
|
Swing over carriage
|
250mm
|
|
Swing over gap
|
670mm
|
|
Max turning length
|
1000mm/1500mm
|
|
Taper hole of spindle
|
MT.NO.5
|
|
Dia. of spindle hole
|
35mm
|
|
Range of spindle speeds
|
20-1000r/min
|
|
Range of longitudinal feeds
|
0.042-1mm/r
|
|
Range of cross feeds
|
0.021-0.5mm/r
|
|
Metnc thread(Number Range)
|
23 0.25-6
|
|
BS screw thread (Number)
|
25 2-32
|
|
Driller & Miller
|
Horizontal Miller
|
|
Working surface(W×L)
|
220mm×660mm
|
|
Travel of table(transverse.lon.)
|
152mm.275mm
|
|
Max shaping length
|
275mm
|
|
Ram speed
|
25-50Strockes/min
|
|
Range of Lon. Feeds
|
0.15-0.77mm/storck
|
|
Max shaping height
|
200mm
|
|
Max drilling diameter
|
38mm
|
|
Face-milling cutter
End-milling cutter
|
63mm/16mm
|
|
Taper hole of spindle
|
MT.NO.4
|
|
Axial travel of spindle
|
100mm
|
|
Range of spindle speeds
|
140-785r/min
|
|
Range of horizontal spindle
|
90-500r/min
|
|
Taper hole of horizontal spindle
|
MT3
|
