Drilling & Milling Machine |

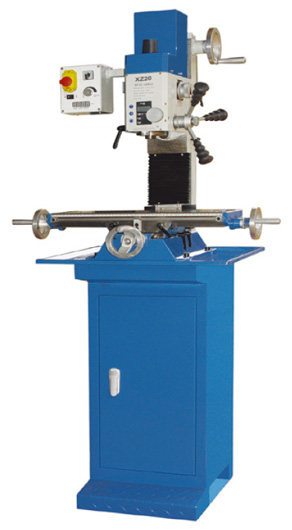

Variable speed drilling &milling machine |
 |
|

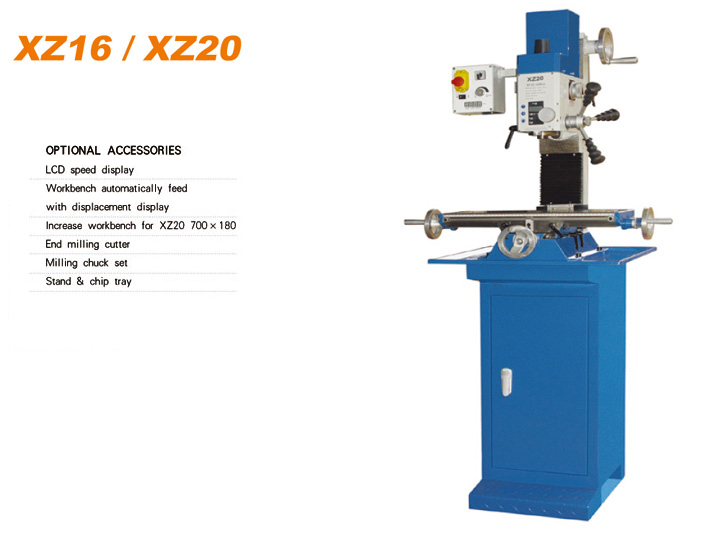

Model
|
XZ16
|
XZ20
|
|
Drilling capacity (max.)
|
16mm
|
20mm
|
|
Face milling capacity (max.)
|
.50mm
|
63mm
|
|
End milling capacity (max.)
|
16mm
|
20mm
|
|
Spindle travel manually
|
175mm
|
185mm
|
|
Spindle taper
|
MT2/M10
|
MT2/M10
|
|
Spindle speed
|
100-3000rpm
|
180-3200rpm
|
|
Sleeve travel
|
50mm
|
50mm
|
|
T-slot size
|
10mm
|
12mm
|
|
Dimension of worktable
|
400×120mm
|
500×180mm
|
|
Z-axis travel
|
210mm
|
380mm
|
|
Y-axis travel
|
160mm
|
175mm
|
|
X-axis travel
|
220mm
|
280mm
|
|
Motor Power
|
500W 230V/50Hz
|
750W 230V/50Hz
|
|
Pack Size
|
510×450×760mm
|
670×550×860mm
|
|
N.W.
|
60Kg
|
103kg
|
 |
|

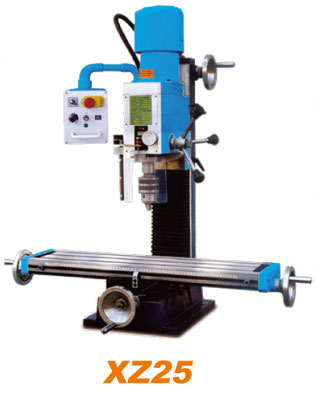

Model
|
XZ25
|
|
Drilling capacity (max.)
|
25mm
|
|
Face milling capacity (max.)
|
60mm
|
|
End milling capacity (max.)
|
20mm
|
|
Spindle travel
|
50mm
|
|
Longitudinal travel
|
550mm
|
|
Cross travel
|
200mm
|
|
Spindle taper
|
MT3
|
|
Spindle rotary angle
|
-90º¡«+90º
|
|
Spindle speed
|
50-3000rpm
|
|
Max. distance spindle to table
|
400mm
|
|
Dimension of worktable
|
800×180mm
|
|
Motor Power
|
1200W 230V/50Hz
|
|
Pack Size
|
920×600×1000 mm
|
|
N.W.£¯£Ç.W.
|
145/185kg
|
|
|
| |
|
|
