Drilling&milling machine |
 |
 |
|
Model
|

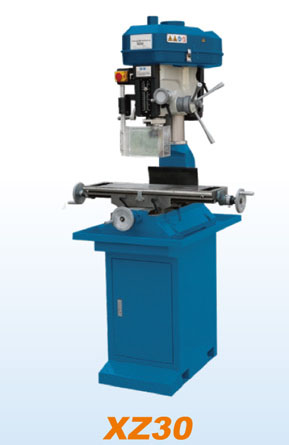

XZ30
|
|
Drilling capacity (iron)
|
§æ30mm
|
|
Drilling capacity (steel)
|
§æ25mm
|
|
Face milling capacity
|
§æ76mm
|
|
End milling capacity (max.)
|
§æ20mm
|
|
Dimension of worktable
|
730×210mm
|
|
Longitudinal travel of worktable
|
500mm
|
|
Cross travel of worktable
|
230mm
|
|
Spindle taper
|
MT3 or R8
|
|
Spindle travel
|
120mm
|
|
Spindle speed
|
100-2080
|
|
Max. Distance Between Spindle And Table
|
440mm
|
|
Power and speed of motor
|
1.5Kw 1450rpm
|
|
N.W./G.W.
|
300/350Kg
|
|
Pack Size
|
1075×910×1315mm
|
|
|
Model
|

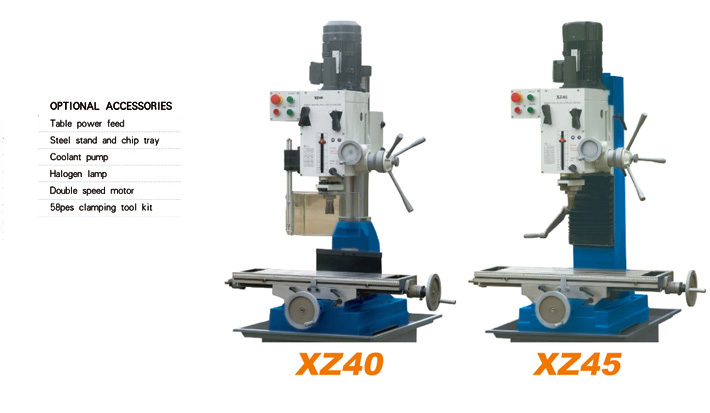

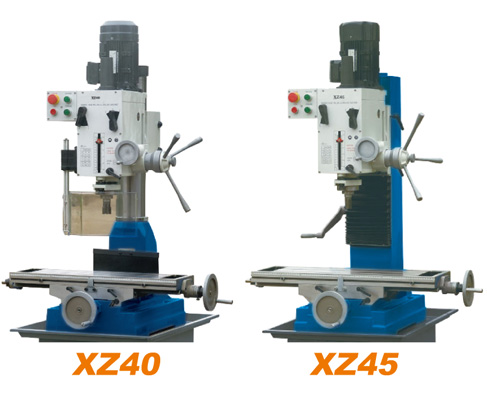

XZ40
|
XZ45
|
|
Drilling capacity (iron)
|
§æ40mm
|
§æ45mm
|
|
Drilling capacity (steel)
|
§æ32mm
|
§æ32mm
|
|
Face milling capacity
|
§æ76mm
|
§æ76mm
|
|
End milling capacity (max.)
|
§æ32mm
|
§æ32mm
|
|
Dimension of worktable
|
730×210mm
|
800×240mm
|
|
Longitudinal travel of worktable
|
500mm
|
500mm
|
|
Cross travel of worktable
|
230mm
|
230mm
|
|
Spindle taper
|
MT3 or MT4,R8
|
MT3 or MT4,R8
|
|
Spindle travel
|
120mm
|
120mm
|
|
Spindle speed
|
75,170,280,540,960,1600
|
75,170,280,540,960,1600
|
|
Max. Distance Between Spindle And Table
|
470mm
|
450mm
|
|
Range of head tilt
|
±90°
|
±90°
|
|
Power and speed of motor
|
1.1Kw 1450rpm
|
1.5Kw 1450rpm
|
|
N.W./G.W.
|
270/300Kg
|
330/350Kg
|
|
Pack Size
|
800×750×1150mm
|
800×750×1150mm
|
|
| |
|
