Model
|

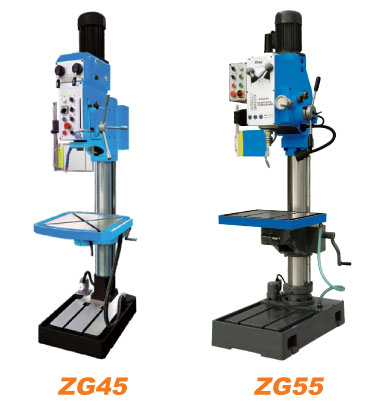

ZG45
|
ZG55
|
|
Max. drilling capacity
|
45mm
|
70/50mm
|
|
Threading in steel/cast iron
|
M20/M24
|
33mm
|
|
Spindle taper
|
MT4
|
MT4
|
|
Spindle speed
|
50-1450rpm
|
6 :50-1500 rpm
|
|
T-slot size
|
18mm
|
|
|
Distance spindle axis to column
|
350mm
|
350mm
|
|
Spindle travel
|
180mm
|
210mm
|
|
Dimension of worktable
|
560×385mm
|
600×500mm
|
|
Base Size
|
730×405mm
|
940×580mm
|
|
Motor Power
|
1.1KW
|
3kw
|
|
Spindle power feed
|
2 steps/0.1-0.2mm/rev
|
4(0.1mm 0.2mm 0.3mm 0.4mm)
|
|
Max. Distance Between Spindle And Table
|
770mm
|
700mm
|
|
Max. Distance Between Spindle And Base
|
1320mm
|
1290mm
|
|
N.W./G.W.
|
595/640kg
|
830/880KG
|
|
Pack Size
|
1100×610×2270mm
|
660×1062×2134 mm
|
