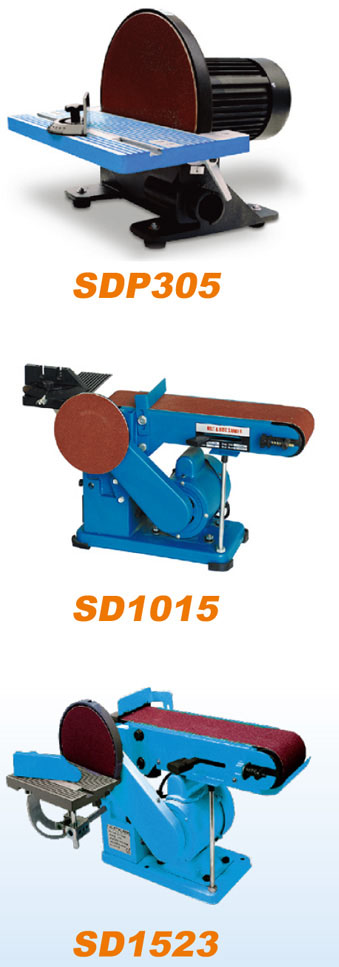

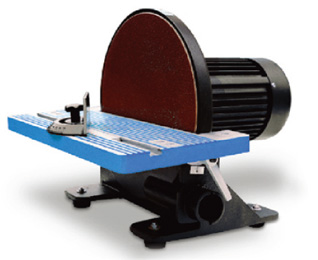

Model
|
SDP305
|
|
Motor
|
230V-50Hz 750W
|
|
Sand disc diameter
|
ф305mm
|
|
Table size
|
438×156mm
|
|
Table tilting range
|
0~45°
|
|
Disc speed
|
1400min-1
|
|
Dimension
|
485×438×362mm
|
|
Packing size
|
455×400×385cm
|
|
G.W./N.W.
|
32/30kg
|
|
|
Model
|
SD1015
|
|
Max. Length Emery Belt
|
430mm
|
|
Width of Emery Belt
|
100mm
|
|
Dia. of Emery Disc
|
150mm
|
|
Spinning Angle of Emery Plate
|
0-90。
|
|
Table Size
|
190x125mm
|
|
Spindle Speed / Min
|
1420
|
|
Power
|
375W
|
|
Level Height
|
275mm
|
|
Vertical Height
|
675mm
|
|
G.W./N.W.
|
19/17kg
|
|
Packing Size
|
500x285x250mm
|
|
Loading Amount / 20'ctn
|
830pcs
|
|
|
Model
|
SD1523
|
|
Power
|
230V-50Hz 750W
|
|
Dia. of Emery Disc
|
ф230mm
|
|
Belt size
|
150×1220mm
|
|
Table Size
|
314×157mm
|
|
Table tilting range
|
0~45°
|
|
Disc speed
|
1400min-1
|
|
Belt speed
|
5.3m/s
|
|
Dimension
|
728×505×1006mm
|
|
Packing Size
|
705×385×445mm
|
|
G.W./N.W.
|
52/49.5kg
|
|
