Geared Head Drilling Machine |

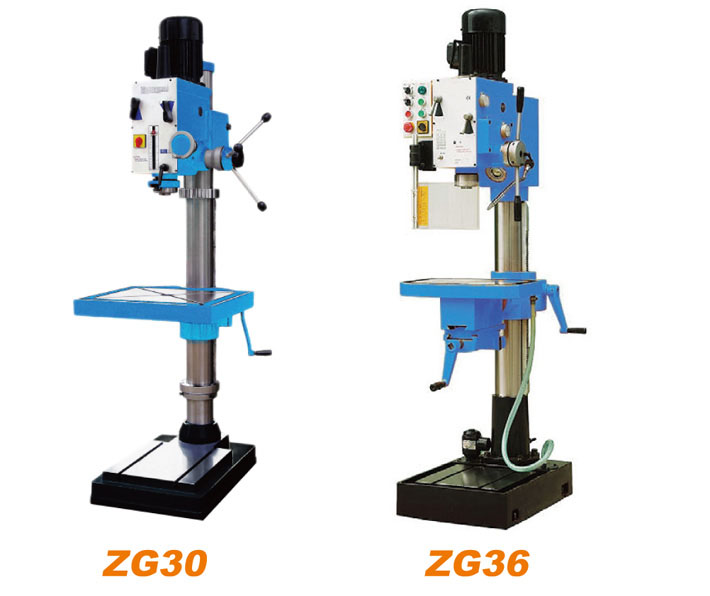

Geared Head Drilling Machine ZG30/36 |
 |
|
Model
|
ZG30
|
ZG36
|
|
Max. drilling capacity
|
31.5mm(MT3) 40mm(MT4)
|
36mm
|
|
Spindle taper
|
MT3 or MT4
|
MT4
|
|
Spindle speed
|
75£1600
|
75-3200rpm
|
|
Distance spindle axis to column
|
272.5
|
320mm
|
|
Spindle travel
|
120
|
130mm
|
|
Dimension of worktable
|
540×470mm
|
500×360mm
|
|
Base Size
|
650×450mm
|
470×670mm
|
|
Motor Power
|
1.1KW
|
1.5KW
|
|
Dia. of Column
|
§æ115mm
|
§æ125mm
|
|
Max Distance Between Spindle And Table
|
715mm
|
680mm
|
|
Max Distance Between Spindle And Base
|
1180mm
|
1140mm
|
|
N.W./G.W.
|
320/370kg
|
400/470kg
|
|
Pack Size
|
740×720×1830mm
|
570×810×2110mm
|
|
| |
|
|
