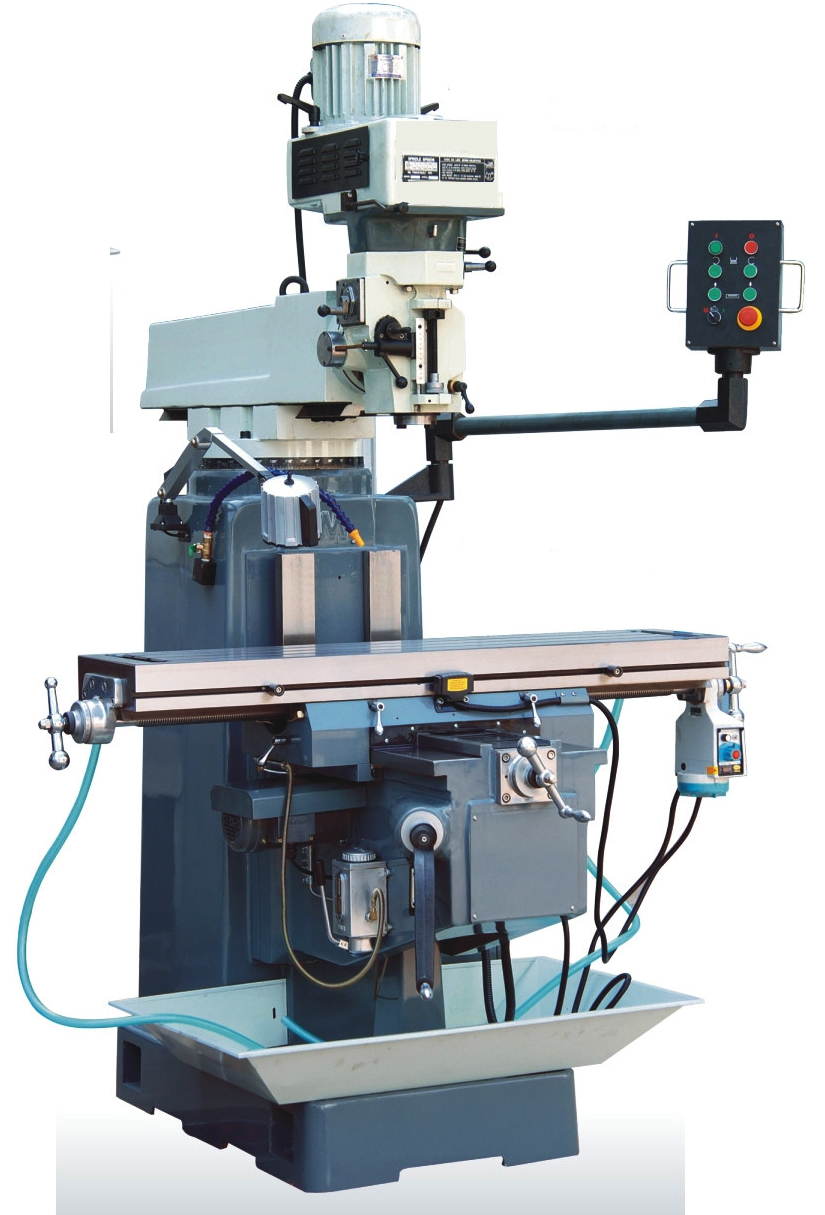

Model |
XT5 |
|
Spindle taper |
R8/NT40(§æ100mm) |
|
Number of steps |
8 |
|
Range of spindle speed |
50-3750rpm |
|
Down feed of spindle |
0.038-0.076-0.203rev/mm |
|
Number of down feed |
3 |
|
Spindle tavel |
127mm |
|
Head incline(left-right) |
90° |
|
Head incline(forth-back) |
0° |
|
Distance spindle to table(Max.) |
540mm |
|
Distance spindle to machine body(Max.) |
549mm |
|
Distance spindle to machine body(Min.) |
152mm |
|
Collet capacity |
3-22mm |
|
Dimension of worktable |
250*1270mm |
|
Longitudinal travel of table(Max.) |
760mm |
|
Cross travel of table(Max.) |
415mm |
|
T-slot size/distance/number |
16mm*64*3 |
|
Between two T-slot's distance |
64mm |
|
Table load(Max.) |
320kg |
|
Travel of up & down(Max.) |
420mm |
|
Travel of strectching arm |
540mm |
|
Shape of slide up & down |
Square |
|
Shape of bedway |
Square |
|
Dimension |
2432*1800*2336 |
|
Motor |
3.75KW,3Ph,50Hz,380V |
|
Net weight |
1550kg |
