Precision Lathe |

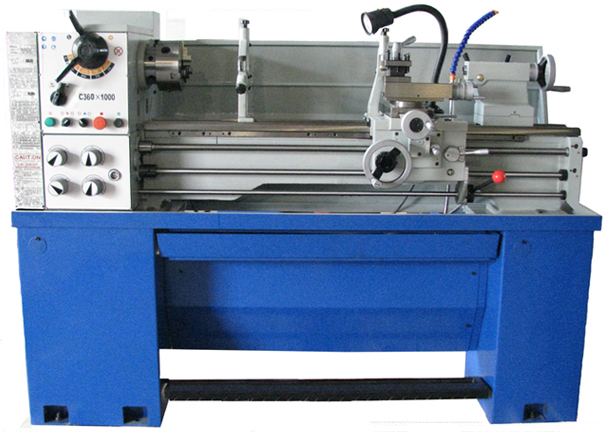

Precision lathe C320/360/400/500 |
 |
|
Model
|
C320
|
C360
|
|
Turning Ø via lathe bed
|
330
|
356
|
|
Turning Ø via slide
|
180
|
220
|
|
Distance between centers
|
1000
|
1000
|
|
Spindle bore
|
38
|
38
|
|
Spindle taper
|
MT5
|
MT5
|
|
Spindle speeds
|
65-1800
|
45-1800
|
|
Pitch-metric
|
0.4-7
|
0.4-7
|
|
Pitch-inch
|
4-60
|
4-56
|
|
Tailstock taper
|
MT3
|
MT3
|
|
Motor power
|
1100
|
1500
|
|
N.W./G.W.
|
750/800
|
850/950
|
|
Packing size
|
1930x760x1450
|
1930x760x1580
|
|
max. swing over bed
|
400mm
|
500mm
|
|
max. swing over cross slide
|
230mm
|
330mm
|
|
max. swing over gap
|
560mm
|
660mm
|
|
effective length of gap
|
200mm
|
|
center distance
|
750/1000/1500mm
|
|
bed width
|
360mm
|
|
spindle hole
|
52mm
|
|
spindle nose
|
ISO-C6
|
|
spindle taper
|
MT6
|
|
spindle speed
|
9steps 40-1400rpm
|
|
metric threads range
|
19kinds 0.25-14mm
|
|
inch threads range
|
49kinds 2-40inch
|
|
moudle threads range
|
11kinds 0.5-3.5mπ
|
|
max. travel of top slide
|
95mm
|
|
max. travel of cross slide
|
200mm
|
50mm
|
|
max. size of tool shank
|
20*20m©O
|
|
dia. of tailstock sleeve
|
65mm
|
|
taper of tailstock sleeve
|
MT4
|
|
max. travel of tailstock
|
140mm
|
|
main drive motor
|
4 or 5.5KW
|
|
coolant pump motor
|
125W
|
|
1000mm
|
2450mm*1150mm*1650mm
|
|
1500mm
|
2880mm*1150mm*1650mm
|
|
1000mm
|
1500/1900KG
|
1600KG/2000KG
|
|
1500mm
|
1650/2050KG
|
1750/2150KG
|
|
|
|
|
|
|
| |
|
|
