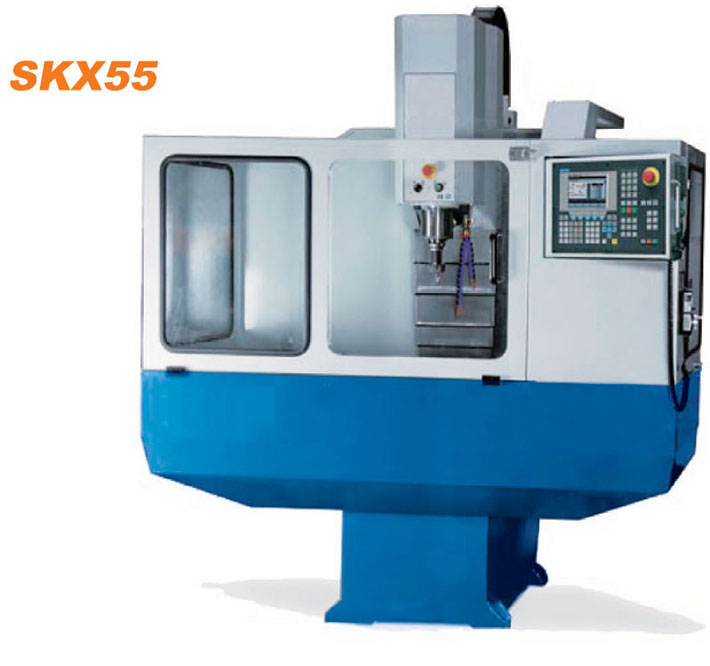

数控铣床 |
 |
|
型号Model
|
SKX55
|
|
主轴锥度Spindle taper
|
BT40
|
|
主轴端面至工作台的距离 Distance spindle/table
|
110-510mm
|
|
工作台尺寸（L×W）Cross table size(L×W)
|
960×280mm
|
|
T 型槽尺寸/长度/数量T-slot size/Distance/Number
|
14mm/85mm/3
|
|
主轴转速Spindle speed
|
100-6000rpm
|
|
Z轴行程Z-axis travel
|
400mm
|
|
Y轴行程Y-axis travel
|
300mm
|
|
X轴行程X-axis travel
|
450mm
|
|
Z轴进给率Rate of feed Z axis
|
1500mm/min
|
|
Y轴进给率Rate of feed Y axis
|
3000mm/min
|
|
X轴进给率Rate of feed X axis
|
3000mm/min
|
|
工作台最大承载量Load of cross table(max)
|
300kgs
|
|
净重Net weight
|
1050kgs
|
|
冷却泵电机功率Net power coolant pump
|
90W
|
|
主电机功率Main spindle
|
4KW 380V/50HZ/3PH
|
|
| |
|
|
