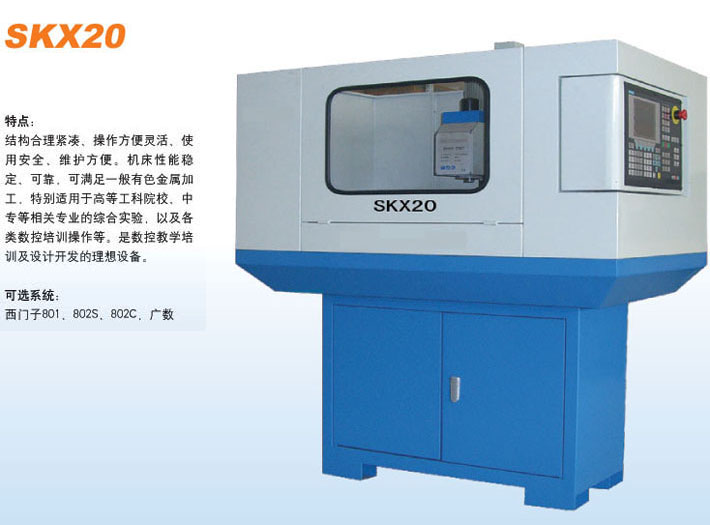

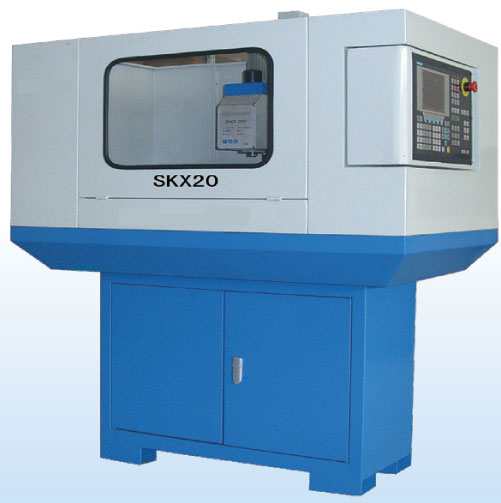

数控铣床 |
 |
|
型号
|
Model
|
SKX20
|
|
最大钻孔直径
|
Max. drilling capacity
|
20mm
|
|
面铣能力
|
Max. face milling capacity
|
63mm
|
|
立铣能力
|
Max. end milling capacity
|
20mm
|
|
主轴锥度
|
Spindle taper
|
MT2
|
|
T型槽尺寸/长度/数量
|
T-slot size/distance/No
|
12mm/63mm/3
|
|
工作台尺寸
|
Table size
|
500×180mm
|
|
Z/Y/X轴行程
|
Z/Y/X travel
|
275mm/135mm/300mm
|
|
Z/Y/X轴进给率
|
Rate of feed Z/Y/X axis
|
2000mm/3000mm/3000mm
|
|
主轴转速
|
Spindle speed
|
80-3500rpm(变频调速)
infinitely variable speed
|
|
定位精度
|
Positioning accuracy
|
±0.02/300mm
|
|
重复定位精度
|
Rep positioning accuracy
|
±0.01mm
|
|
X/Y/Z轴步进电机扭矩
|
(X) (Y)（Z）Stepping motor torque
|
3N.M/3N.M/4N.M
|
|
主轴电机功率
|
Spindle motor power
|
600W
|
|
净重/毛重
|
N.W/G.W
|
300Kg/340Kg
|
|
包装尺寸
|
Packing size
|
1300×1000×1680mm
|
|
| |
|
|
