多功能车床 |
 |
|
型号
|
Model
|

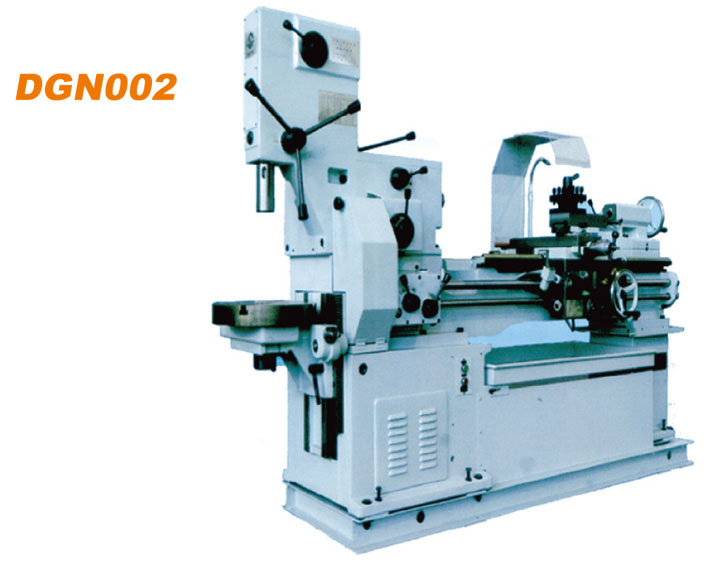

DGN002
|
|
床身上最大回转直径
|
Max. swing over bed
|
Ø450
|
|
刀架上最大回转直径
|
Max. swing over carriage
|
Ø250
|
|
最大车削长度
|
Max. turning length
|
1000/1500
|
|
床身凹槽处最大回转直径
|
Max. swing in gap
|
Ø670
|
|
主轴孔锥度
|
Spindle inside taper
|
MT.NO.5
|
|
主轴通孔直径
|
Thru-hole dia.
|
Ø38
|
|
主轴转速及范围
|
Spindle speed
|
(12)50-1000(rpm)
|
|
纵向进给/横向进给
|
Longitudinal feed/cross feed
|
(33)0.033-1.33/0.017-0.66mm/r
|
|
加工螺纹公制/英制
|
Thread cutting Metric/Inch
|
(30)0.2-8mm/(24)2-32(TPI)
|
|
尾座套筒孔锥度
|
Tailstock inside taper
|
MT.NO.4
|
|
钻削最大孔径
|
Drilling capacity
|
Ø38
|
|
钻轴垂直行程
|
Drilling spindle travel
|
100
|
|
钻削工作台直径
|
Table dia.
|
Ø360
|
|
钻削工作台垂直行程
|
Table travel
|
350
|
|
钻轴孔锥度
|
Drilling spindle inside taper
|
MT.NO.4
|
|
钻轴转速及范围
|
Drilling speed
|
(3)300-1000(rpm)
|
|
主电机功率
|
Main motor power
|
3(Kw) AC
|
|
机床外形尺寸
|
Overall dimension(L×W×H)
|
2600×920×1547mm
|
|
重量（Kg）
|
Weight
|
1700/1900
|
|
型号
|
Model
|
DGN004
|
|
主电机功率
|
Main motor power
|
AC 3KW 50/60HZ
|
|
机床重量
|
Machine mass
|
2000KG/2400KG
|
|
机床外形尺寸（长×宽×高）
|
Machine overall dimension(L×W×H)
|
2485mm×1228mm×1583mm
|
|
车
|
Turner
|
|
|
床身上最大回转直径
|
Swing over bed
|
420mm
|
|
刀架上最大回转直径
|
Swing over carriage
|
250mm
|
|
马鞍处最大回转直径
|
Swing over gap
|
670mm
|
|
最大车削长度
|
Max turning length
|
1000mm/1500mm
|
|
主轴锥孔
|
Taper hole of spindle
|
MT.NO.5
|
|
轴孔径
|
Dia. of spindle hole
|
35mm
|
|
主轴转速范围
|
Range of spindle speeds
|
20-1000r/min
|
|
纵向进给量范围
|
Range of longitudinal feeds
|
0.042-1mm/r
|
|
横向进给量范围
|
Range of cross feeds
|
0.021-0.5mm/r
|
|
公制螺纹：（种数、范围）
|
Metnc thread(Number Range)
|
23 0.25-6
|
|
英制螺纹：（种数、范围）
|
BS screw thread (Number)
|
25 2-32
|
|
牛刨
|
钻铣
|
卧铣
|
|
Shaper
|
Driller & Miller
|
Horizontal Miller
|
|
|
|
|
|
工作台工作面积（宽×长）
|
Working surface(W×L)
|
220mm×660mm
|
|
工作台行程（横向×纵向）
|
Travel of table(transverse.lon.)
|
152mm.275mm
|
|
|
|
|
|
最大刨削长度
|
Max shaping length
|
275mm
|
|
滑枕工作速
|
Ram speed
|
25-50Strockes/min
|
|
纵向进给量范围
|
Range of Lon. Feeds
|
0.15-0.77mm/storck
|
|
最大刨削高度
|
Max shaping height
|
200mm
|
|
|
|
|
|
最大钻孔直径
|
Max drilling diameter
|
38mm
|
|
最大铣削刀具直径（平铣、立铣）
|
Face-milling cutter
End-milling cutter
|
63mm/16mm
|
|
主轴锥孔
|
Taper hole of spindle
|
MT.NO.4
|
|
主轴轴向移动距离
|
Axial travel of spindle
|
100mm
|
|
主轴转速范围
|
Range of spindle speeds
|
140-785r/min
|
|
|
|
|
|
卧铣主轴转速范围
|
Range of horizontal spindle
|
90-500r/min
|
|
卧铣主轴锥孔
|
Taper hole of horizontal spindle
|
MT3
|
|
| |
|
|
