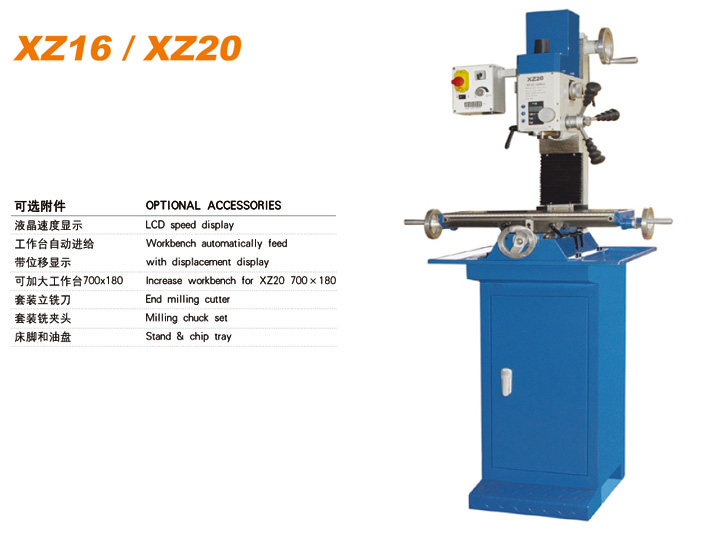

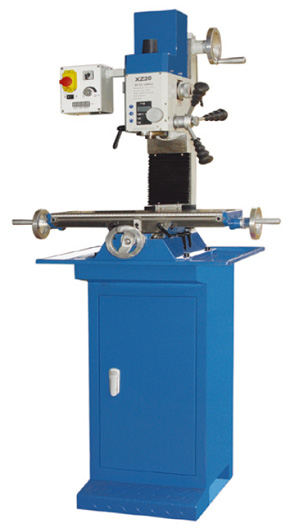

无级变速钻铣床系列 |
 |
|
型号
|
Model
|
XZ16
|
XZ20
|
|
最大钻孔直径
|
Drilling capacity (max.)
|
16mm
|
20mm
|
|
面铣能力
|
Face milling capacity (max.)
|
.50mm
|
63mm
|
|
立铣能力
|
End milling capacity (max.)
|
16mm
|
20mm
|
|
主轴手动升降行程
|
Spindle travel manually
|
175mm
|
185mm
|
|
主轴锥度
|
Spindle taper
|
MT2/M10
|
MT2/M10
|
|
主轴转速
|
Spindle speed
|
100-3000rpm
|
180-3200rpm
|
|
套筒行程
|
Sleeve travel
|
50mm
|
50mm
|
|
T型槽尺寸
|
T-slot size
|
10mm
|
12mm
|
|
工作台尺寸
|
Dimension of worktable
|
400×120mm
|
500×180mm
|
|
Z轴行程l
|
Z-axis travel
|
210mm
|
380mm
|
|
Y轴行程
|
Y-axis travel
|
160mm
|
175mm
|
|
X轴行程
|
X-axis travel
|
220mm
|
280mm
|
|
电机功率
|
Motor Power
|
500W 230V/50Hz
|
750W 230V/50Hz
|
|
尺寸
|
Pack Size
|
510×450×760mm
|
670×550×860mm
|
|
净重
|
N.W.
|
60Kg
|
103kg
|
 |
|
型号 Model
|
XZ25
|
|
最大钻孔直径 Drilling capacity (max.)
|
25mm
|
|
面铣能力 Face milling capacity (max.)
|
60mm
|
|
立铣能力 End milling capacity (max.)
|
20mm
|
|
主轴行程 Spindle travel
|
50mm
|
|
工作台纵向行程
|
550mm
|
|
工作台横向行程
|
200mm
|
|
主轴锥度 Spindle taper
|
MT3
|
|
回转角度 Spindle rotary angle
|
-90º～+90º
|
|
主轴转速 Spindle speed
|
50-3000rpm
|
|
主轴至工作台最大距离
Max. distance spindle to table
|
400mm
|
|
工作台尺寸 Dimension of worktable
|
800×180mm
|
|
电机功率 Motor Power
|
1200W 230V/50Hz
|
|
包装尺寸Pack Size
|
920×600×1000 mm
|
|
净重／毛重N.W.／Ｇ.W.
|
145/185kg
|
|
|
| |
|
|
