钻铣床系列 |
 |
 |
|
型号 Model
|
XZ30
|
|
最大钻孔直径(铁)Drilling capacity (iron)
|
ф30mm
|
|
最大钻孔直径(钢)Drilling capacity (steel)
|
ф25mm
|
|
最大铣削能力(平铣)Face milling capacity
|
ф76mm
|
|
最大铣削能力(立铣)End milling capacity (max.)
|
ф20mm
|
|
工作台尺寸Dimension of worktable
|
730×210mm
|
|
工作台纵向行程 Longitudinal travel of worktable
|
500mm
|
|
工作台横向行程Cross travel of worktable
|
230mm
|
|
主轴锥度 Spindle taper
|
MT3 or R8
|
|
主轴行程 Spindle travel
|
120mm
|
|
主轴转速 Spindle speed
|
100-2080
|
|
主轴至工作台最大距离
Max. Distance Between Spindle And Table
|
440mm
|
|
电机功率和转速 Power and speed of motor
|
1.5Kw 1450rpm
|
|
重量(净重/毛重) N.W./G.W.
|
300/350Kg
|
|
包装箱尺寸 Pack Size
|
1075×910×1315mm
|
|
|

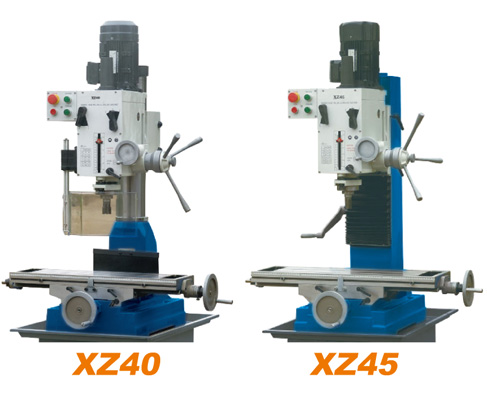

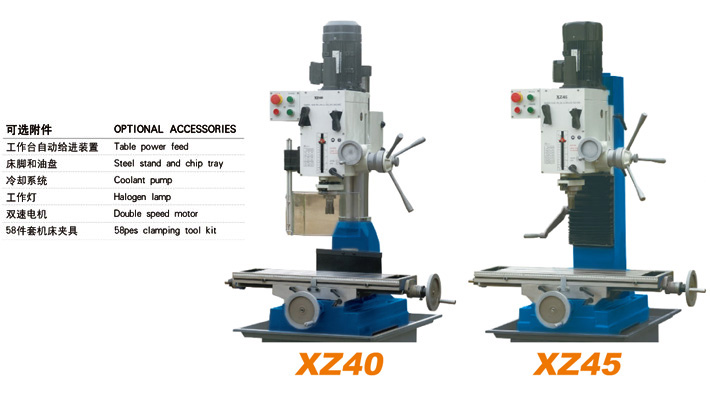

型号Model
|
XZ40
|
XZ45
|
|
最大钻孔直径(铁) Drilling capacity (iron)
|
ф40mm
|
ф45mm
|
|
最大钻孔直径(钢) Drilling capacity (steel)
|
ф32mm
|
ф32mm
|
|
最大铣削能力(平铣) Face milling capacity
|
ф76mm
|
ф76mm
|
|
最大铣削能力(立铣) End milling capacity (max.)
|
ф32mm
|
ф32mm
|
|
工作台尺寸Dimension of worktable
|
730×210mm
|
800×240mm
|
|
工作台纵向行程Longitudinal travel of worktable
|
500mm
|
500mm
|
|
工作台横向行程Cross travel of worktable
|
230mm
|
230mm
|
|
主轴锥度Spindle taper
|
MT3 or MT4,R8
|
MT3 or MT4,R8
|
|
主轴行程Spindle travel
|
120mm
|
120mm
|
|
主轴转速Spindle speed
|
75,170,280,540,960,1600
|
75,170,280,540,960,1600
|
|
主轴至工作台面的最大距离
Max. Distance Between Spindle And Table
|
470mm
|
450mm
|
|
主轴箱左右旋角Range of head tilt
|
±90°
|
±90°
|
|
电机功率和转速Power and speed of motor
|
1.1Kw 1450rpm
|
1.5Kw 1450rpm
|
|
重量(净重/毛重) N.W./G.W.
|
270/300Kg
|
330/350Kg
|
|
包装箱尺寸Pack Size
|
800×750×1150mm
|
800×750×1150mm
|
|
| |
|
|
