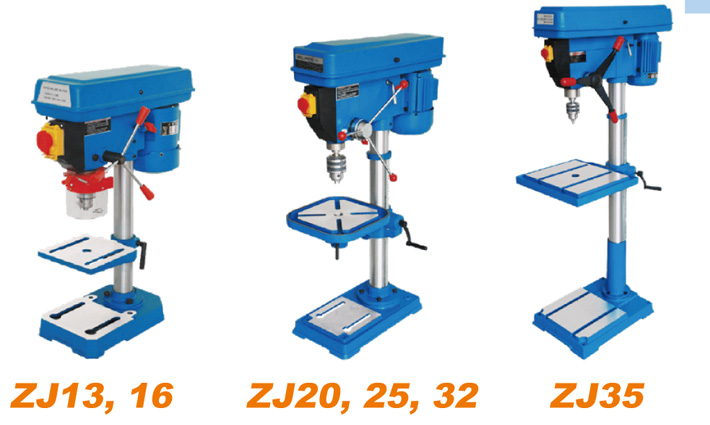

台钻 ZJ13/16/20/25/32/35 |
 |
|
型号
|
ZJ13
|
ZJ16
|
ZJ20
|
ZJ25
|
ZJ32
|
ZJ35
|
|
Model
|
|
钻孔直径（mm)
|
1.5~13
|
3~16
|
5~20
|
5~20
|
5~32
|
5~32
|
|
Drilling Capacity
|
|
主轴行程（mm)
|
50
|
80
|
85
|
80
|
120
|
120
|
|
Spindle Travel
|
|
主轴锥度（mm)
|
B16
|
MT2
|
MT2
|
|
MT4
|
MT4
|
|
Spindle Taper
|
|
MT3
|
|
主轴转速
|
5
|
16
|
12
|
12
|
12
|
12
|
|
Speed of Spindle
|
|
工作台回转半径（mm)
|
104
|
165
|
173
|
173
|
254
|
254
|
|
Rotary Radius of Table
|
|
工作台尺寸（mm)
|
160x165
|
ф290
|
260x260
|
260x260
|
360x360
|
420x480
|
|
Table Size
|
|
底座尺寸（mm)
|
290x190
|
420x250
|
460x270
|
460x272
|
470x360
|
575x430
|
|
Base Size
|
|
|
主轴端至工作面最大距离（mm)
|
210
|
450
|
340
|
670
|
480
|
480
|
|
Max Distance Between Spindle And Table
|
|
主轴端至底座面最大距离（mm)
|
300
|
660
|
880
|
1100
|
1050
|
1050
|
|
Max Distance Between Spindle And Base
|
|
立柱直径（mm)
|
ф46
|
ф70
|
ф70
|
ф70
|
ф92
|
ф92
|
|
Diameter of Column
|
|
电机功率(W)
|
350
|
550
|
750
|
750
|
1100
|
1100
|
|
Motor Power
|
|
整机外形尺寸（mm)
|
440x250x580
|
580x330x980
|
580x330x1200
|
580x350x1600
|
780x600x1700
|
780x600x1700
|
|
Overall Dimension
|
|
包装尺寸（mm)
|
440x340x220
|
780x450x280
|
800x500x300
|
1150x500x300
|
1450x640x340
|
1470x670x350
|
|
Pack Size
|
|
重量(kg)
|
16/17
|
44/46
|
57/60
|
67/70
|
130/135
|
145/153
|
|
N.W./G.W.
|
|
20'柜装箱数量（台）
|
880PCS
|
300PCS
|
250PCS
|
178PCS
|
86PCS
|
86PCS
|
|
Loading Amount/20'ctn
|
|
| |
|
|
