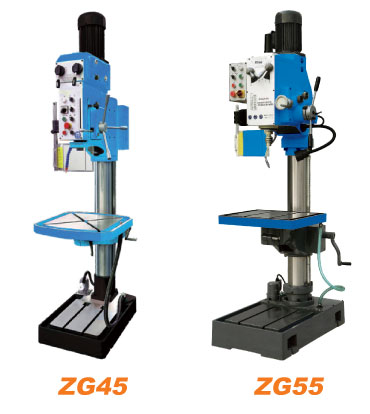

型号 Model
|
ZG45
|
ZG55
|
|
最大钻孔直径 Max. drilling capacity
|
45mm
|
70/50mm
|
|
攻丝直径(钢/铸件) Threading in steel/cast iron
|
M20/M24
|
33mm
|
|
主轴锥度 Spindle taper
|
MT4
|
MT4
|
|
主轴转速 Spindle speed
|
50-1450rpm
|
6级:50-1500 rpm
|
|
T型槽尺寸 T-slot size
|
18mm
|
|
|
主轴中心至立柱距离 Distance spindle axis to column
|
350mm
|
350mm
|
|
主轴行程 Spindle travel
|
180mm
|
210mm
|
|
工作台尺寸 Dimension of worktable
|
560×385mm
|
600×500mm
|
|
底座尺寸 Base Size
|
730×405mm
|
940×580mm
|
|
电机功率 Motor Power
|
1.1KW
|
3kw
|
|
主轴自动进给 Spindle power feed
|
2 steps/0.1-0.2mm/rev
|
4(0.1mm 0.2mm 0.3mm 0.4mm)
|
|
主轴底端至工作台面的最大距离
Max. Distance Between Spindle And Table
|
770mm
|
700mm
|
|
主轴底端至底座的最大距离Max. Distance Between Spindle And Base
|
1320mm
|
1290mm
|
|
重量N.W./G.W.
|
595/640kg
|
830/880KG
|
|
包装尺寸Pack Size
|
1100×610×2270mm
|
660×1062×2134 mm
|
