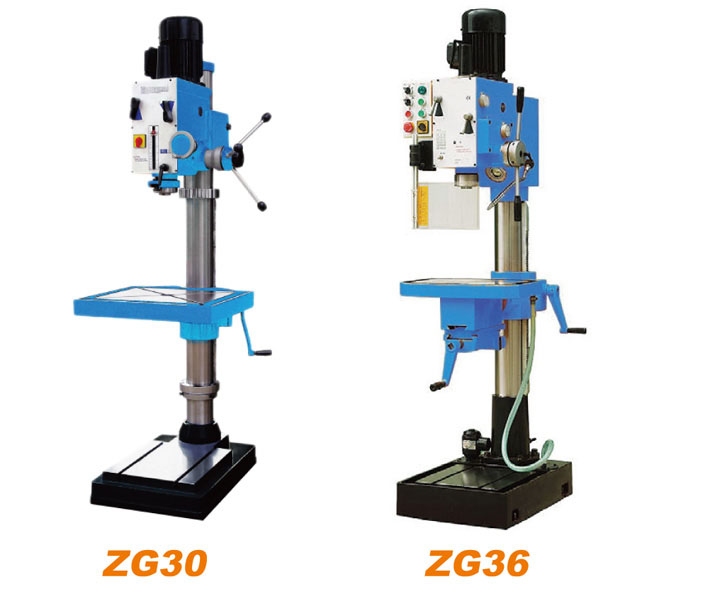

立钻 ZG30/36 |
 |
|
型号 Model
|
ZG30
|
ZG36
|
|
最大钻孔直径 Max. drilling capacity
|
31.5mm(MT3) 40mm(MT4)
|
36mm
|
|
主轴锥度 Spindle taper
|
MT3 or MT4
|
MT4
|
|
主轴转速 Spindle speed
|
75－1600
|
75-3200rpm
|
|
主轴中心至立柱距离 Distance spindle axis to column
|
272.5
|
320mm
|
|
主轴行程 Spindle travel
|
120
|
130mm
|
|
工作台尺寸 Dimension of worktable
|
540×470mm
|
500×360mm
|
|
底座尺寸 Base Size
|
650×450mm
|
470×670mm
|
|
电机功率 Motor Power
|
1.1KW
|
1.5KW
|
|
立柱直径 Dia. of Column
|
ф115mm
|
ф125mm
|
|
主轴底端至工作台面的最大距离Max Distance Between Spindle And Table
|
715mm
|
680mm
|
|
主轴底端至底座的最大距离Max Distance Between Spindle And Base
|
1180mm
|
1140mm
|
|
重量N.W./G.W.
|
320/370kg
|
400/470kg
|
|
包装尺寸Pack Size
|
740×720×1830mm
|
570×810×2110mm
|
|
| |
|
|
